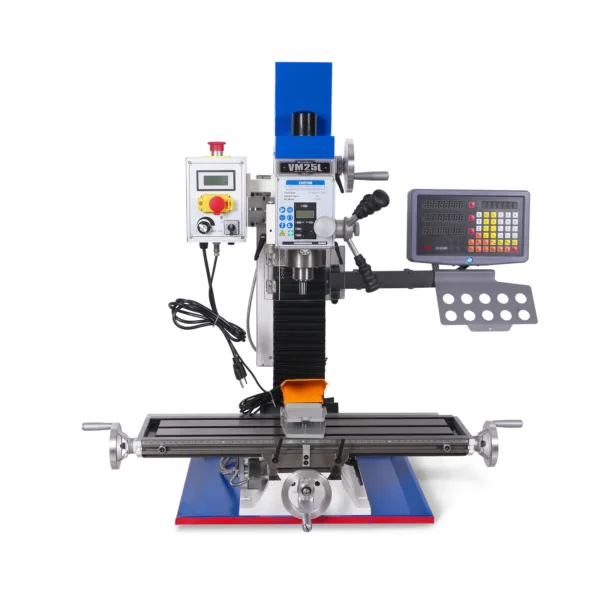

1.5HP 7‘’x 27-1/2‘’ Benchtop Mini Mill Drill Machine, Variable Speed, R8 Spindle, Brushless Motor, 110V, Compact Milling Drilling Tool for Garage…

Spindle Specifications
Spindle Taper
R8
Spindle Travel
2″(50mm)
Quill Diameter
Ø2-3/8”(60mm)
Spindle Speed Range
0-2500RPM
Number of Speed Steps
Variable
Drawbar Thread Size
7/16″-20”
Head Tilt Angle
±90°
Spindle to Table Distance
14-1/2″(370mm)
Spindle to Column Distance
7-1/2″(190mm)
Cutting Capacity
Drilling Capacity
1”(25mm)
End Milling Capacity
5/8″(16mm)
Face Milling Capacity
2-1/2″(63mm)
Table & Travel
Table Size
7”x27-1/2″(180x700mm)
T-Slot Size / No. / Centers
3 X 1/2”(12mm)
X-Axis Travel
19-1/2”(495mm)
Y-Axis Travel
6-11/16”(170mm)
Z-Axis Travel
12-5/8”(320mm)
Construction & Drive
Column Type
Square Column，Dovetail Slide
Drive Type
Belt
Motor Power
1.5HP 110V Single-Phase Brushless
Motor Type
DC  Brushless
Electrical & Setup
Net / Gross Weight
260/286lbs(118/130KG)
Overall Dimensions
36”x22”x37”(922X549X935mm)
Base Size
14”x11”(340X275mm)
Shipping Dimensions
28”x29”x37”(710X730X920mm)
