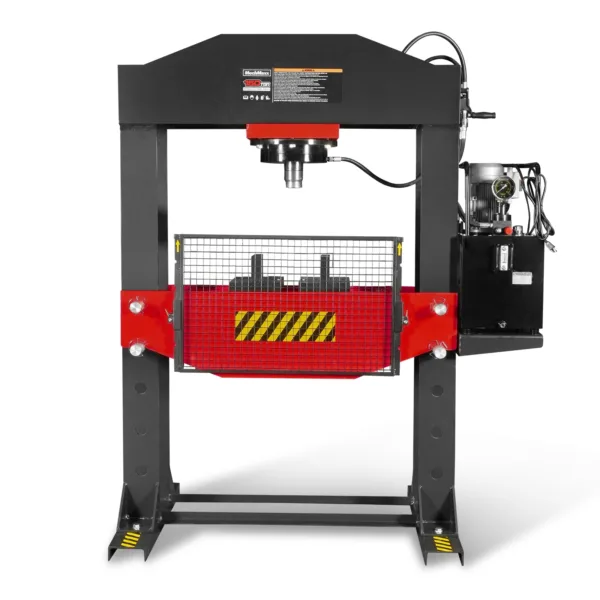

150 Ton H-Frame Electric Hydraulic Shop Press with Double-Acting Cylinder & Chain-Driven Table Lift, 110V Motor, Fully Welded Steel Frame, Safety…

Rated Capacity
150 Tons
Pump Type
Single-acting
Operation Type
Electric Hydraulic Operation
Voltage
110V / 60Hz
Ram Stroke
13.8 in
Power
2 HP（1.5 kW）
Ram Diameter
3.4 in
Revolutions Per Minute
1800 RPM
Cylinder Bore
8.7 in
Working Pressure – Low Pressure Stage
725 PSI
Ram Range of Movement
11.8 Left / Right from Center
Working Pressure – High Pressure Stage
5582.5 PSI
Bed Depth
13 in
Flow Rate – Low Pressure Stage
2.9 GPM
Bed Height
15 in
Flow Rate – High Pressure Stage
0.48 GPM
Minimum Ram to Bed
18 in
Usable Oil Capacity
7.9 US Gallons
Maximum Ram to Bed
38 in
Oil Tank Capacity
10 US Gallons
Number of Bed Adjustment Holes
5
Recommended Hydraulic Oil
AW32 Hydraulic Oil
Bed Adjustment Hole Spacing
7.5 in
Pump Size
28.3 x 18.8 x 13.8 in
Frame Construction
Fully Welded Heavy-Duty H-Frame
Gauge Type
4 in Oil-Filled Pressure Gauge
Assembled Size (H x D x W)
87 x 41.4 x 71.7 in
Included Accessories
Protective Grid Guard, V-Blocks
Internal Frame Width
45.3 in
Packing Size (LxWxH)
89.0 x 60.6 x 31.5 in
Protective Grid Guard Size
39 x 24 in
Weight (N.W/G.W.)
2264.1 lbs / 2623.5 lbs
Ram Retraction
Twin Springs
