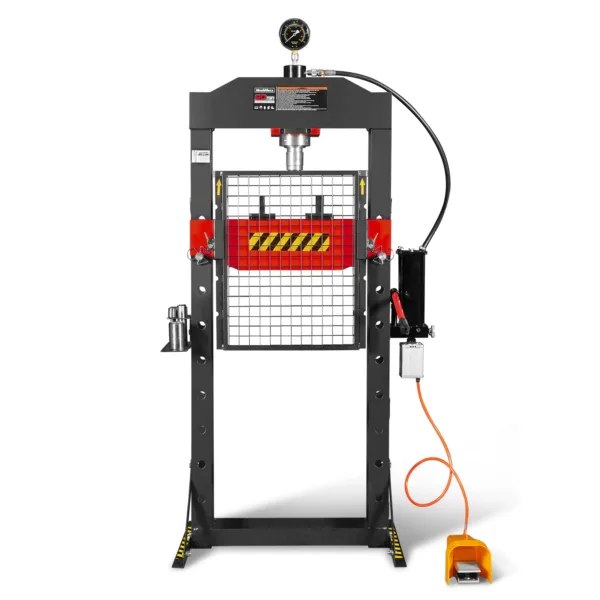

20 Ton H-Frame Air/Hydraulic Shop Press with Press Pin Kit, Fully Welded Steel Frame, Safety Guard, Foot Pedal Control, HSP20

Rated Capacity
20 Tons
Number of Bed Adjustment Holes
9
Operation Type
Air & Manual Dual Operation
Bed Adjustment Hole Spacing
4.7 in
Air Pressure
110-125 PSI
Frame Construction
Fully Welded Heavy-Duty H-Frame
Ram Stroke
5.7 in
Assembled Size (H x D x W)
72 x 23.6 x 36 in
Ram Diameter
1.9 in
Internal Frame Width
21.3 in
Cylinder Bore
2.4 in
Protective Grid Guard Size
24 x 20 in
Ram Range of Movement
3.5 in Left / Right from Center
Recommended Hydraulic Oil
AW32 Hydraulic Oil
Bed Depth
6.3 in
Gauge Type
4 in Oil-Filled Pressure Gauge
Bed Height
6.7 in
Included Accessories
Press Pin Kit, Protective Grid Guard,  Foot Pedal Valve, V-Blocks
Minimum Ram to Bed
2.3 in
Packing Size (LxWxH)
67.7 x 28.7 x 11.0 in
Maximum Ram to Bed
40.1 in
Weight (N.W/G.W.)
231.5 lbs / 273.4 lbs
Ram Retraction
Twin Springs
