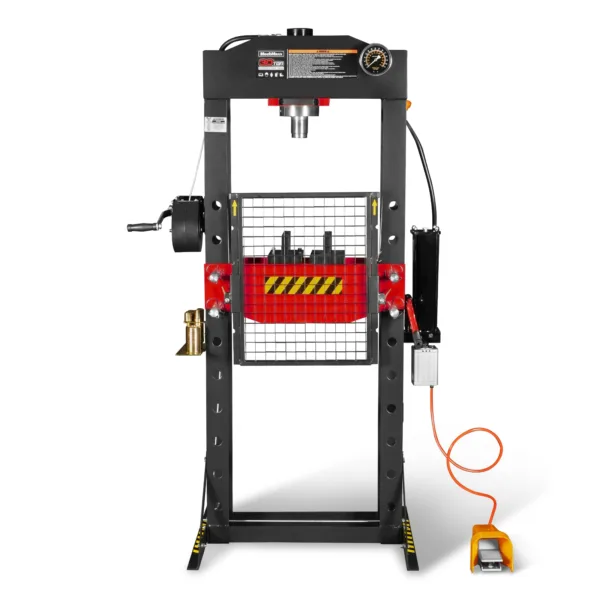

30 Ton H-Frame Air/Hydraulic Shop Press with Hand Winch & Press Pin Kit, Fully Welded Steel Frame, Safety Guard, Foot Pedal Control, HSP30

Rated Capacity
30 Tons
Number of Bed Adjustment Holes
10
Operation Type
Air & Manual Dual Operation
Bed Adjustment Hole Spacing
4.7 in
Air Pressure
110-125 PSI
Frame Construction
Fully Welded Heavy-Duty H-Frame
Ram Stroke
5.9 in
Assembled Size (H x D x W)
72.4 x 28.8 x 42 in
Ram Diameter
3 in
Internal Frame Width
21.3 in
Cylinder Bore
2.4 in
Protective Grid Guard Size
24 x 20 in
Ram Range of Movement
4 in Left / Right from Center
Recommended Hydraulic Oil
AW32 Hydraulic Oil
Bed Depth
8 in
Gauge Type
4 in Oil-Filled Pressure Gauge
Bed Height
8.3 in
Included Accessories
Press Pin Kit, Protective Grid Guard, Hand Winch, Foot Pedal Valve, V-Blocks
Minimum Ram to Bed
6.5 in
Packing Size (LxWxH)
74.4 x 29.5 x 13.0 in
Maximum Ram to Bed
44.3 in
Weight (N.W/G.W.)
385.8 lbs / 432.1 lbs
Ram Retraction
Twin Springs
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
