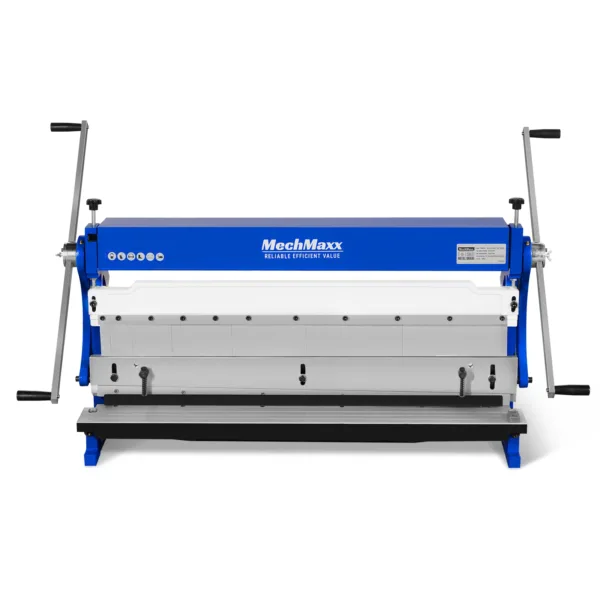

40-inch 3-in-1 Pan and Box Brake – Slip Roll, Shear, Bending Machine for Sheet Metal, 20 Gauge Mild Steel, Adjustable Fingers, Heavy Duty,…

Slip Roll Function
Minimum Rolling Diameter
1.57″ (40 mm)
Maximum Rolling Thickness
20 Ga. mild steel
Wire Sizes
3/16″, 1/4″, 5/16″
Roller Type
Slip Rollers for straightening and forming cylinders, cones, and arcs
Brake Function
Maximum Bending Angle
90°
Maximum Bending Thickness
20 Ga. mild steel
Minimum Reverse Bend
1/2″
Maximum Height of Pan/Box Brake Sides
2-3/8″
Shear Function
Shearing Capacity
20 Ga. mild steel
Blades
Reversible upper shear blade and fixed lower table blade
Cutting Method
The upper movable shear blade lowers past the fixed table blade to shear the workpiece
Shear Length
40″ (maximum cutting length)
Built for Longevity
Blade Adjustment
Adjustable for varying thickness and material types
Construction
Built with heavy-duty cast iron for durability and long-term reliability
Finger Dies
Adjustable for pans and boxes of varying sizes
Surface Construction
Surface-ground cast-iron construction for smooth operation
