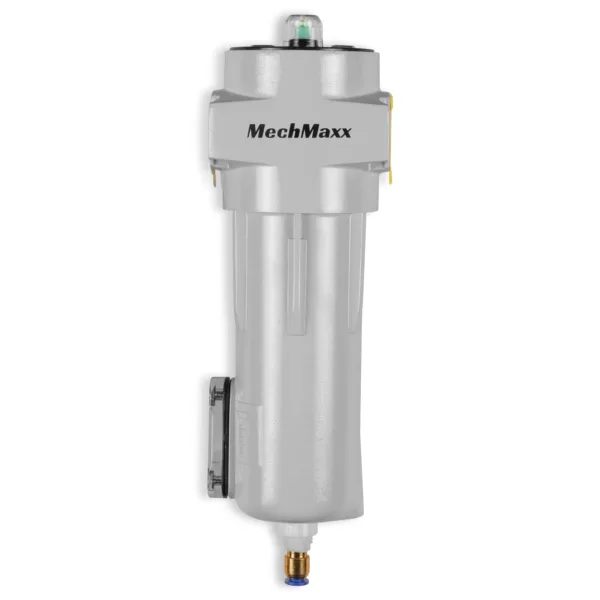

63 CFM Compressed Air Oil-Water Separator Precision Filter,0.01μm,Oil Content 0.01ppm, With Auto Drain, Pressure Indicator

MODEL
CAF152
Configuration
Differential Pressure IndicatorLiquid Sight GlassInternal Automatic Drain
Max Flow
63.6 CFM
Inlet/Outlet Thread
1/2″NPT
Max Op. Pressure
145PSI/1.0MPa
Max Op. Temp.
176℉/80℃
Min Op. Temp.
34.7℉/1.5℃
Filter Efficiency
0.01μm
Oil Content
0.01ppm
Maximum Burst Pressure
1,523PSI/10.5MPa
Solid Particle Filtration Efficiency
99.999+%
Oil Filtration Efficiency
99.9+%
Residual Oil Concentration
＜0.01mg/m³
Model Of Element
CAF152F（SKU:480070）
Weight
3.1LB
Size（W*D*H）
3.5×3.1×11in
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
