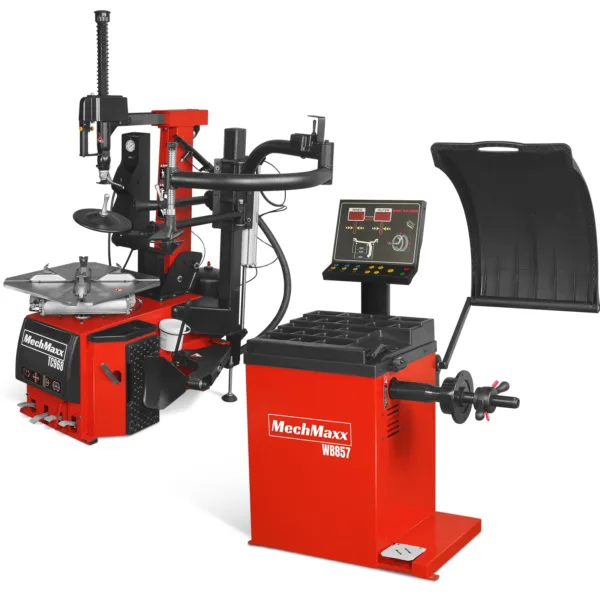

High Performance Tilt Back Tire Changer Wheel Balancer Combo, TC9682, WB857

Tire Changer TC9682

Voltage
110v / 60hz / 1 phase
Bead Blaster
Hand Held Bead Blaster
Motor Power
1.5 HP
Hex Shaft Locked Type
Pneumatic
Inside Rim Clamp Range
14-26 in
Mount Head
Stainless Steel & Plastic
Outside Rim Clamp Range
12-24 in
Inflator
Foot-controlled
Max Tire Diameter
43 in
Motorcycle Adapter
Sold Separately, SKU: 200020
Rim Width
3-15 in
Packing
2 x Plywood case
Working Pressure
117-145 psi (8-10 bar)
Machine Packing Size (LxWxH)
40 x 30 x 45 in
Bead Breaking Force
6170 lbs
Assist Arm Packing Size (LxWxH)
51 x 16 x 17 in
Type
Tilt Back
Machine Weight (N.W/G.W.)
518/545 lbs
Help Arm
Right-side Assist Arm
Assist Arm Weight (N.W/G.W.)
146/174 lbs
Wheel Balancer WB857

Voltage
110v / 60hz / 1 phase
Shaft Size
40 mm
Motor Power
1/3 HP
Calibration Wheel
Recommended 15 in steel rim wheel
Rim Diameter
10-24 in
Motorcycle Adapter
Sold Separately, SKU: 200021
Rim Width
1.5-20 in
Truck Cone Kit
Sold Separately, SKU: 200022
Max Tire Diameter
40 in
Packing
Plywood case
Max Tire Weight
154 lbs
Packing Size (LxWxH)
35 x 24 x 44 in
Accuracy
±1 gram
Weight (N.W/G.W.)
207/269 lbs
Balancing Speed
200 RPM
