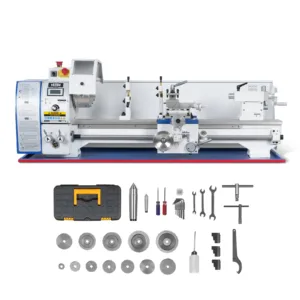

1.5‘’ Spindle Bore Metal Lathe Machine with DRO 8” x 16” High Precision Brushless Motor Mini 1.5HP Benchtop 0-2500 RPM Variable Speed Metal…

Motor
1.5 HP, 110V, Single-Phase, 10A, 60Hz
Swing Over Bed
8‑1/4″(210mm)
Swing Over Cross Slide
4‑5/8″(117mm)
Swing Over Saddle
3-1/2″(90mm)
Distance Between Centers
15‑3/4″(400mm)
Bed Width
4″(100mm)
Spindle Bore
1-1/2″(38mm)
Spindle Mount
Intrinsic back plate
Spindle Type
One-piece Spindle
Spindle Taper
MT#5
Tailstock Taper
MT#2
Tailstock Quill Travel
2″(50mm)
Cross Slide Travel
3-1/2″(90mm)
Compound Slide Travel
2-3/4″(70mm)
Carriage Travel
14-5/16(350mm)
Spindle Speeds
0–2500 RPM
Number of Speed Ranges
Variable
Longitudinal Feeds
0.0037-0.0068 in./rev.
Transverse Feed Rate
/
Leadscrew Size & Pitch
16mm(12TPI)
Threading Capacity – Inch
8–48 TPI（18kinds）
Threading Capacity – Metric
0.4–3.5mm(15kinds)
Maximum Tool Bit Size
15/32″(12mm)
Thread Dial Indicator
YES
Overall Dimensions
36″ W x 19″ D x 20″ H (914 x 480 x 490 mm)
Approximate Shipping Weight
190lbs(75 kg)
